WX502 UNIVERSAL WALL SPEAKER 5 1/4"
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
WX502
Opis
Opis na stronie producenta: https://audac.eu/Products/d/wx502---universal-wall-speaker-5-1-4inch
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Impedance | 8 Ω | |||
| Ingress Protection rating | IP40 | |||
| Max. Power | 100 W | |||
| Sensitivity (1W/1m) | 87 dB | |||
| Speaker type | 2-way | |||
| RMS Power | 50 W | |||
| Crossover | Frequency | 2.5 kHz | ||
| Type | Passive built-in | |||
| Drivers | HF | 1” | ||
| LF | 5” | |||
| Frequency | Range (-10 dB) | 55 Hz - 20 kHz | ||
| Response (± 3 dB) | 70 Hz - 18 kHz | |||
| Line Transformer Tappings | 1 | 40 W / 250 Ω | ||
| 2 | 20 W / 500 Ω | |||
| 3 | 10 W / 1000 Ω | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 102 dB | ||
| @ 8 Ω | 104 dB | |||
| Dispersion | Horizontal | 110° | ||
| Vertical | 110° | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 219 x 146 x 184.4 mm (W x H x D) (Incl. bracket) | |||
| Weight | 2.75 kg | |||
| Operating temperature | -25 °C ~ 70 °C | |||
| Construction | ABS | |||
| Mounting & handling | Mounting bracket | |||
| Front finish | Steel grill | |||

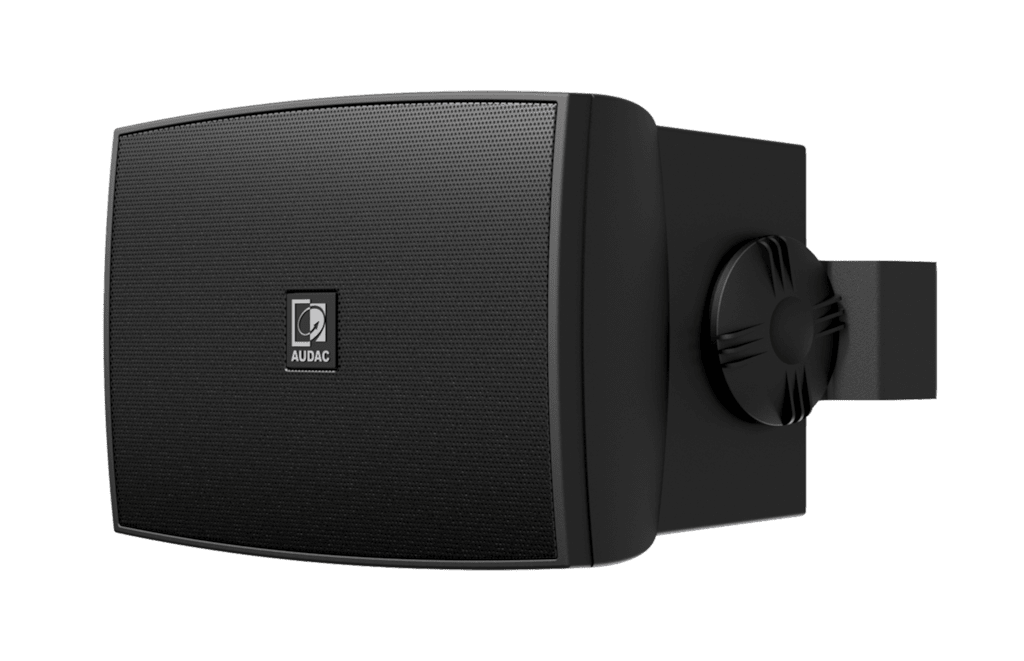

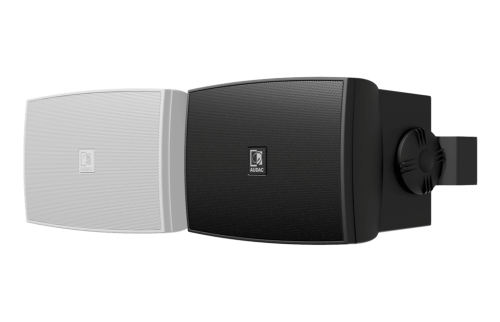

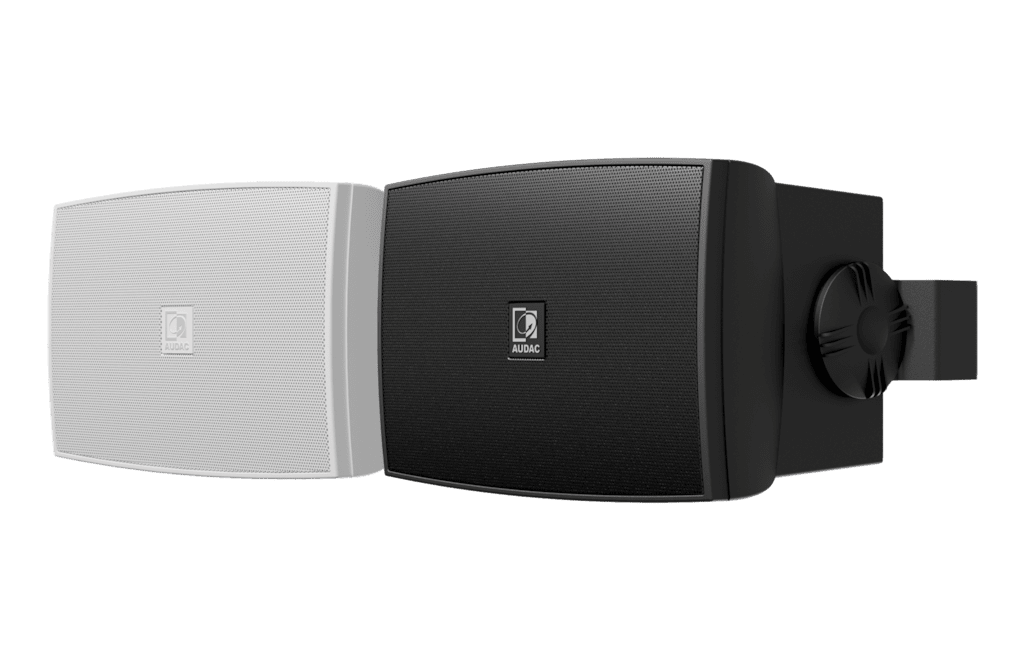

| Colours | Black (RAL9005) (WX502MK2/B) | |||

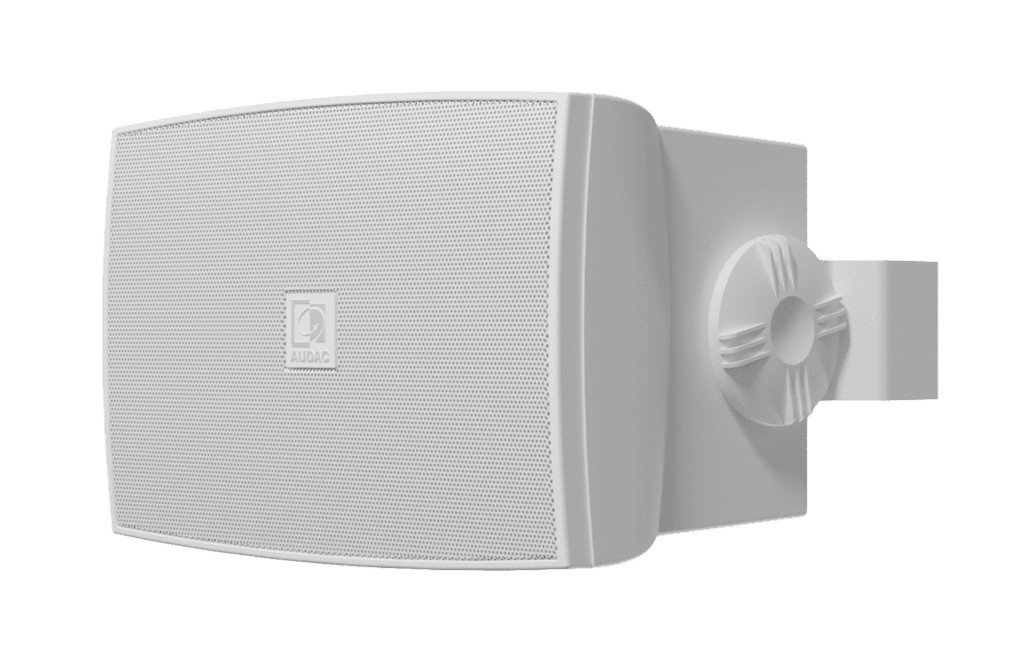

| White (RAL9003) (WX502MK2/W) | ||||
| Accessories | Included | Mounting bracket | ||
