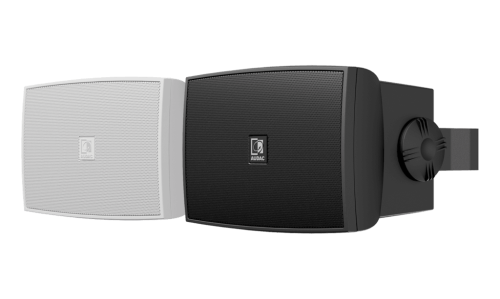

WX302 UNIVERSAL WALL SPEAKER 3"
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
WX302
Opis
Opis na stronie producenta: https://audac.eu/Products/d/wx302---universal-wall-speaker-3inch
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Impedance | 8 Ω | |||
| Ingress Protection rating | IP40 | |||
| Max. Power | 60 W | |||
| Sensitivity (1W/1m) | 85 dB | |||
| Speaker type | 2-way | |||
| RMS Power | 30 W | |||
| Crossover | Frequency | 2.5 kHz | ||
| Type | Passive built-in | |||
| Drivers | HF | 1” | ||
| LF | 3” | |||
| Frequency | Range (-10 dB) | 60 Hz - 20 kHz | ||
| Response (± 3 dB) | 90 Hz - 18 kHz | |||
| Line Transformer Tappings | 1 | 20 W / 500 Ω | ||
| 2 | 10 W / 1000 Ω | |||
| 3 | 5 W / 2000 Ω | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 95 dB | ||
| @ 8 Ω | 100 dB | |||
| Dispersion | Horizontal | 100° | ||
| Vertical | 100° | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 188.4 x 129 x 164.8 mm (W x H x D) (Incl. bracket) | |||
| Weight | 1.66 kg | |||
| Operating temperature | -25 °C ~ 70 °C | |||
| Construction | ABS | |||
| Mounting & handling | Mounting bracket | |||
| Front finish | Steel grill | |||

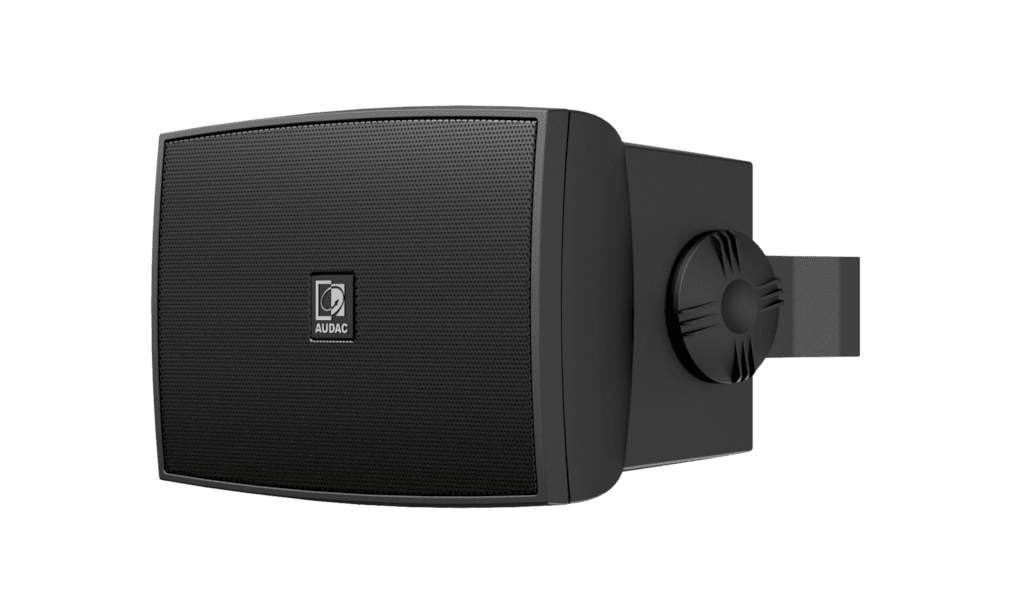

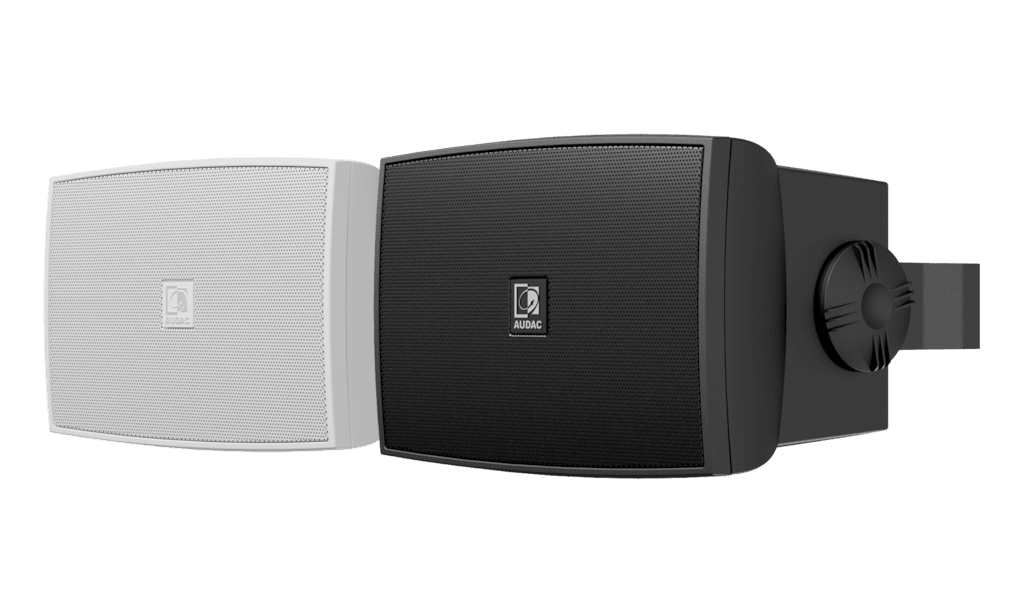

| Colours | Black (RAL9005) (WX302MK2/B) | |||

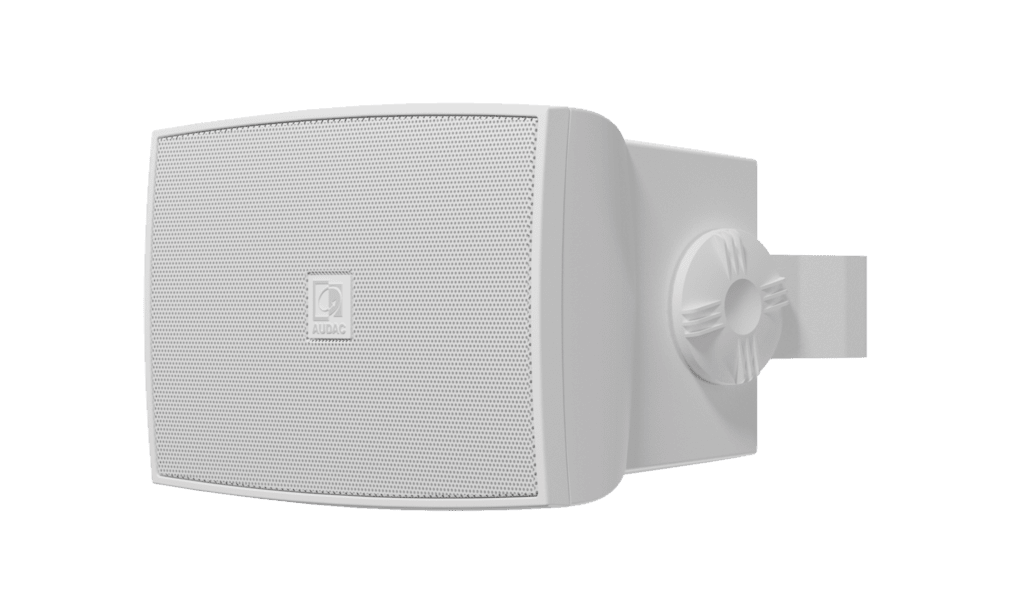

| White (RAL9003) (WX302MK2/W) | ||||
| Accessories | Included | Mounting bracket | ||
