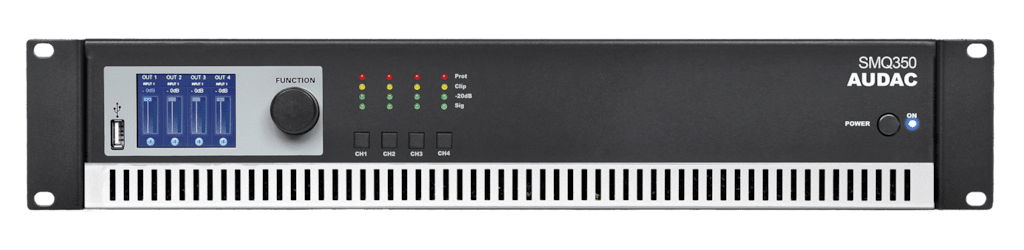

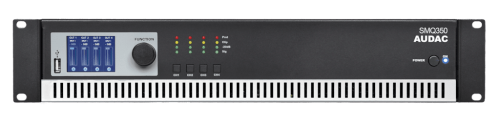

SMQ350 WAVEDYNAMICS™ QUAD-CHANNEL POWER AMPLIFIER 4 X 350W
Opis
Opis na stronie producenta: https://audac.eu/Products/d/smq350---wavedynamics-quad-channel-power-amplifier-4-x-350w
SYSTEM SPECIFICATIONS | |||||
---|---|---|---|---|---|
Signal / Noise | > 95 dB | ||||
THD+N (@ 1 kHz) | < 0.05% (1/2 Rated Power) | ||||
Crosstalk (@ 1 kHz) | > 70 dB | ||||
Technology | Class-D | ||||
Common mode rejection ratio | 70 dB | ||||
Damping factor | > 200 | ||||
Cooling | Temperature controlled FAN | ||||
Operating temperature | 0° ~ 40° @ 95% Humidity | ||||
Frequency | Response (± 3 dB) | 20 Hz - 20 kHz | |||
Inputs | Sensitivity (1W/1m) | -19.5 dB ~ 27 dB | |||
Impedance | 10 kΩ balanced | ||||
Connector | XLR & 3-pin Euro Terminal Block (3.81 mm) | ||||
Outputs | Connector | Speakon compatible & 2-pin Euro Terminal Block (5.08 mm) | |||
Protection | Amplifier | DC Short circuit | |||
Over heating | |||||
Over load | |||||
Signal limiting | |||||
Loudspeaker | Power limiter | ||||
Access | User & Administrator level (Through password and USB-key protection) | ||||
Power | Supply | Switching mode | |||
AC Input: 100-120V/220-240V~ 50/60Hz | |||||
Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility. | |||||
RMS Power | @ 4 Ω Stereo | 4 x 350 W | |||
@ 8 Ω Bridge | 2 x 700 W | ||||
@ 8 Ω Stereo | 4 x 220 W |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Dimensions | 482 x 88 x 420 mm (W x H x D) | |||
Weight | 8.100 kg | |||
Mounting | 19” | |||
Unit height | 2 HE | |||
Construction | Steel | |||
Colours | Black |
