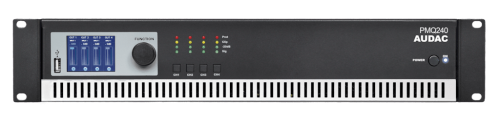

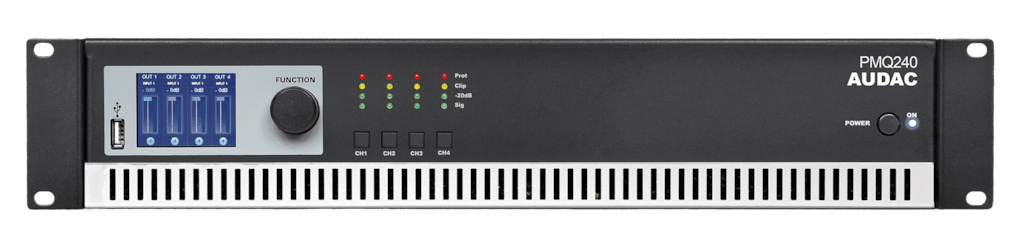

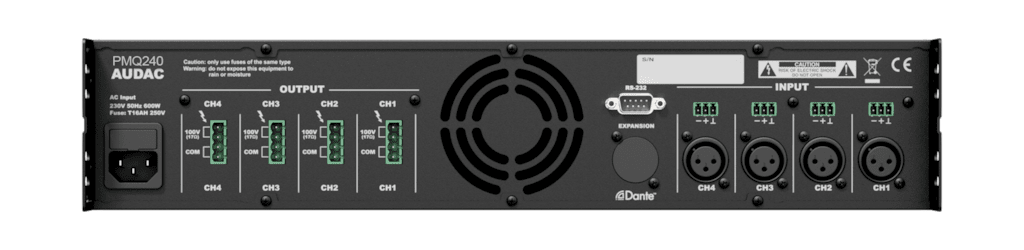

PMQ240 WAVEDYNAMICS™ QUAD-CHANNEL 100V POWER AMPLIFIER
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
PMQ240
Opis
Opis na stronie producenta: https://audac.eu/Products/d/pmq240---wavedynamics-quad-channel-100v-power-amplifier
| SYSTEM SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| RMS Power | 4 x 240 W | ||||
| Signal / Noise | > 95 dB | ||||
| THD+N (@ 1 kHz) | < 0.05% (1/2 Rated Power) | ||||
| Crosstalk (@ 1 kHz) | > 70 dB | ||||
| Technology | Class-D | ||||
| Common mode rejection ratio | 70 dB | ||||
| Damping factor | > 200 | ||||
| Cooling | Temperature controlled FAN | ||||
| Operating temperature | 0° ~ 40° @ 95% Humidity | ||||
| Frequency | Response (± 3 dB) | 50 Hz - 20 kHz | |||
| Power | Supply | Switching mode | |||
| AC Input: 100-120V/220-240V~ 50/60Hz | |||||
| Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility. | |||||
| Inputs | Sensitivity (1W/1m) | -30 dB ~ +5 dB | |||
| Impedance | 10 kΩ balanced | ||||
| Protection | Amplifier | DC Short circuit | |||
| Over heating | |||||
| Over load | |||||
| Signal limiting | |||||
| Access | User & Administrator level (Through password and USB-key protection) | ||||
| Inputs | Connector | XLR & 3-pin Euro Terminal Block (3.81 mm) | |||
| Outputs | Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 482 x 88 x 420 mm (W x H x D) | |||
| Weight | 8.05 kg | |||
| Unit height | 2 HE | |||
| Construction | Steel | |||
| Colours | Black | |||
