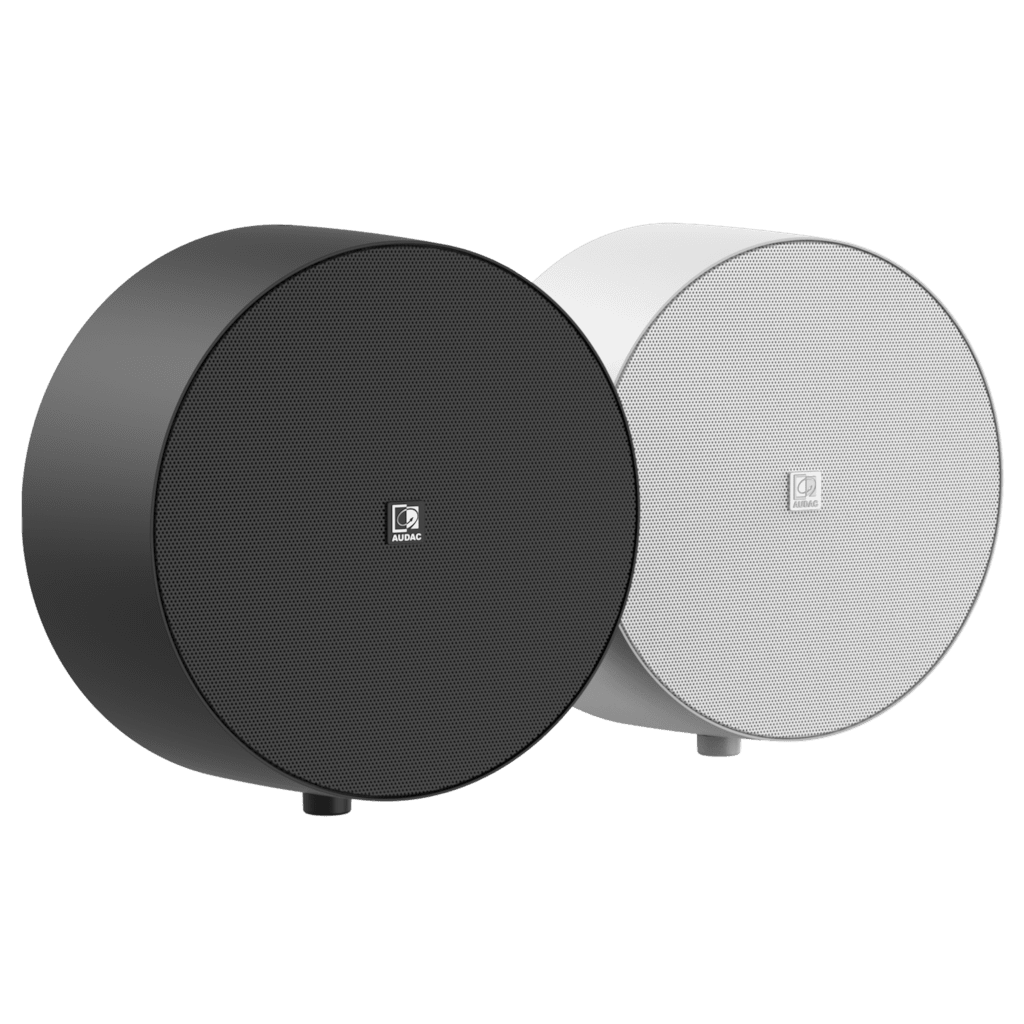

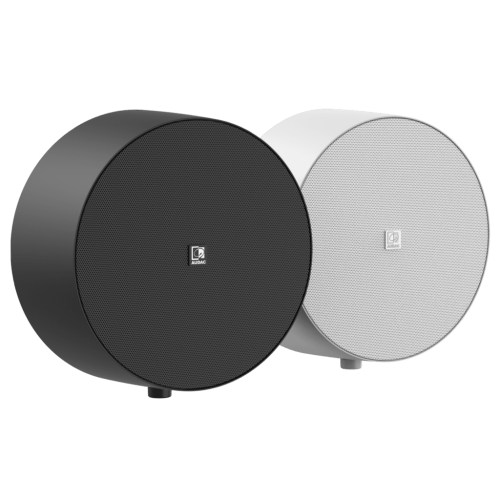

NELO706V SURFACE MOUNT SPEAKER
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
NELO706V
Opis
Opis na stronie producenta: https://audac.eu/Products/d/nelo706---surface-mount-speaker
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Max. Power | 20 W | |||
| RMS Power | 10 W | |||
| Sensitivity (1W/1m) | 96 dB | |||
| Speaker type | Broadband | |||
| Connection | SnapConnect™ | |||
| Drivers | 6.5” Full Range | |||
| Volume control | Integrated rotary volume controller (only NELO706V) | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 106 dB | ||
| Frequency | Response (± 3 dB) | 100 Hz - 15 kHz | ||
| Range (-10 dB) | 70 Hz - 18 kHz | |||
| Line Transformer Tappings | 1 | 833 Ω - 100 V / Not used - 70 V / 6 W | ||
| 2 | 1667 Ω - 100 V / 6 W - 70 V / 3 W | |||
| 3 | 3333 Ω - 100 V / 3 W - 70 V / 1.5 W | |||
| Dispersion | Conical | 140° | ||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Colours | Black & White | |||
| Front finish | Steel grill | |||
| Construction | ABS | |||
| Front finish | borderless finely perforated steel grill | |||
| Mounting | Wall/Ceiling mounting (two screw holes) | |||
| CSK100 ceiling suspension kit (optional) | ||||

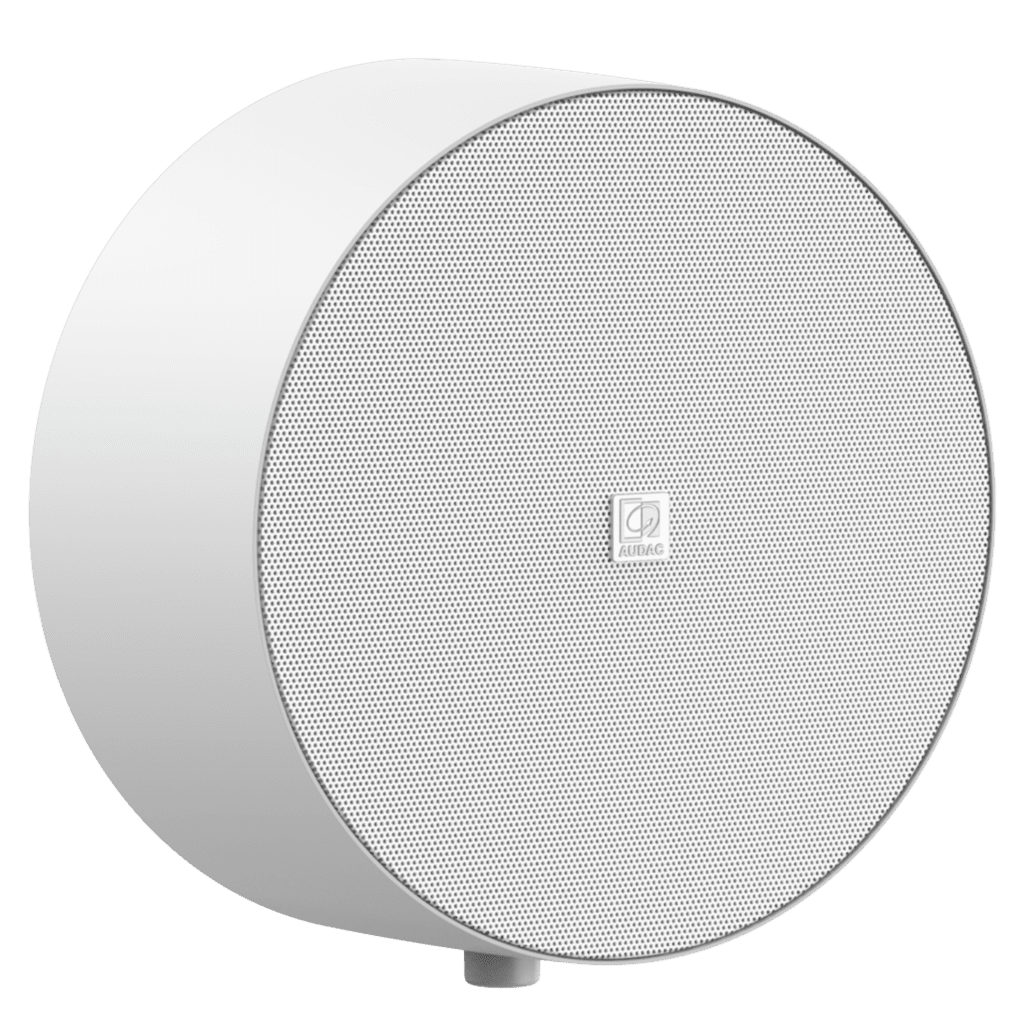

| Colours | White (RAL9003) (NELO706/W) | |||

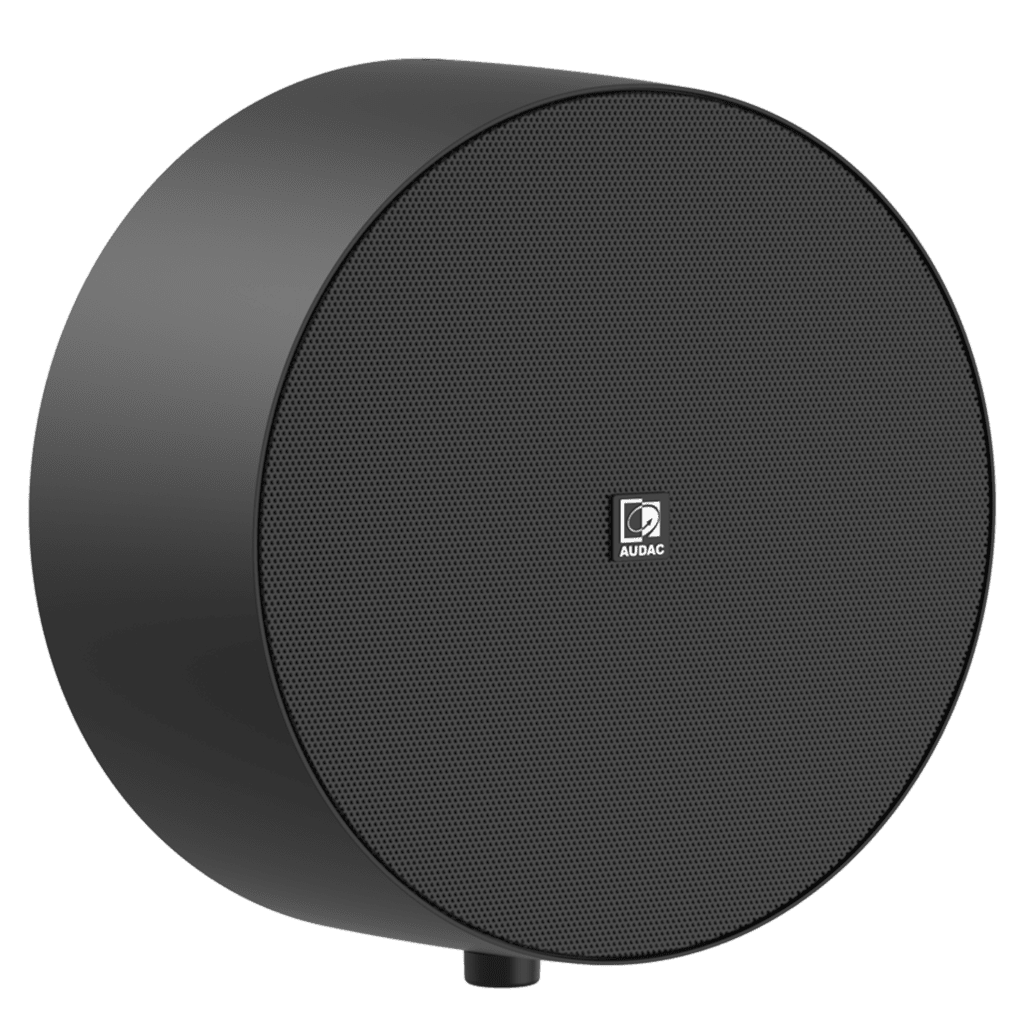

| Black (RAL9005) (NELO706/B) | ||||
| Dimensions | 206.5 x 95 mm (Ø x D) | |||
| Operating temperature | -25 °C ~ 70 °C | |||
