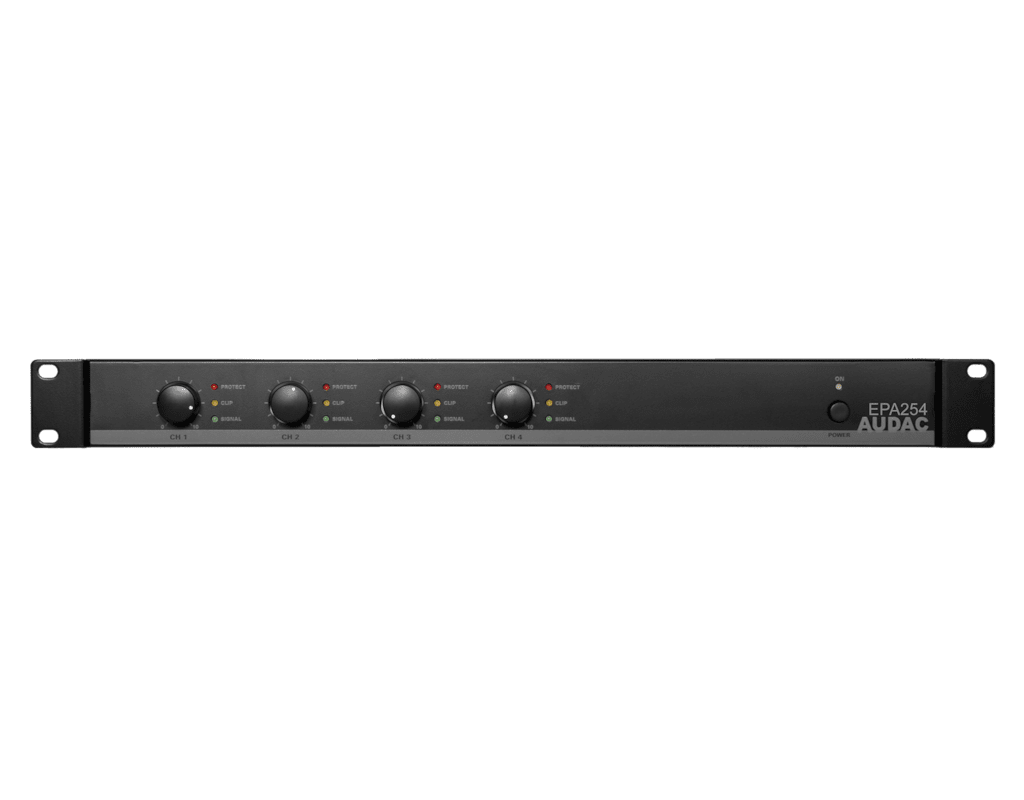

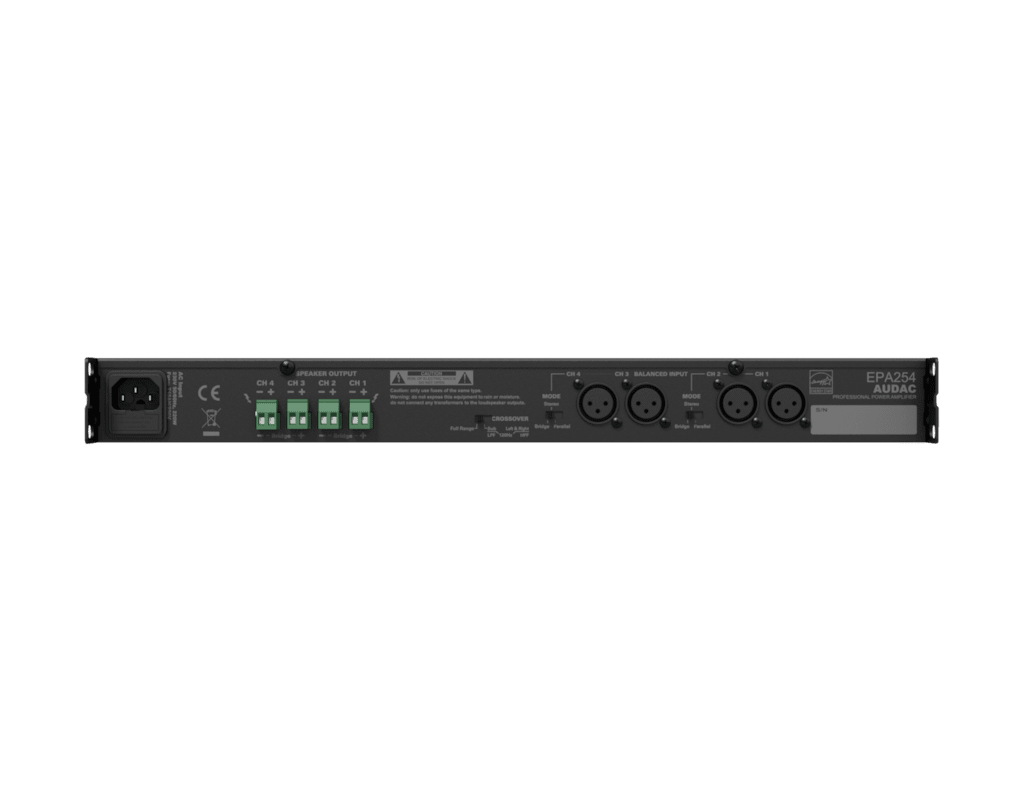

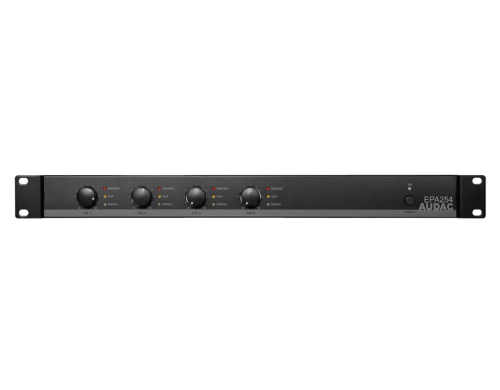

EPA254 QUAD-CHANNEL CLASS-D AMPLIFIER 4 X 250W - CROSSOVER
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
EPA254
Opis
Opis na stronie producenta: https://audac.eu/Products/d/epa254---quad-channel-class-d-amplifier-4-x-250w---crossover
| SYSTEM SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| Signal / Noise | > 90 dB | ||||
| THD+N (@ 1 kHz) | < 0.1% | ||||
| Crosstalk (@ 1 kHz) | > 70 dB | ||||
| Technology | Class-D | ||||
| Protection | DC Short circuit | ||||
| Over heating | |||||
| Over load | |||||
| Signal limiting | |||||
| Cooling | Convection cooled | ||||
| Operating temperature | 0° ~ 40° @ 95% Humidity | ||||
| Frequency | Response (± 3 dB) | 20 Hz - 20 kHz | |||
| Power | Supply | AC Input: 100-120V/220-240V~ 50/60Hz | |||
| Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility. | |||||
| Switching mode | |||||
| Consumption | 438 W | ||||
| Inputs | Sensitivity (1W/1m) | 0 dB (1V RMS) | |||
| Impedance | 12 kΩ balanced | ||||
| Connector | 3-pin XLR female | ||||
| Outputs | Connector | 2-pin Euro Terminal Block (Pitch - 5.08 mm) | |||
| Power | Consumption | Standby | 0.7 Watt (30 min standby time) | ||
| RMS Power | @ 4 Ω Stereo | 4 x 250 W | |||
| @ 8 Ω Bridge | 2 x 500 W | ||||
| @ 8 Ω Stereo | 4 x 130 W | ||||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 482 x 44 x 330 mm (W x H x D) | |||
| Weight | 4.700 kg | |||
| Mounting | 19” | |||
| Unit height | 1 HE | |||
| Construction | Steel | |||
| Colours | Black | |||
