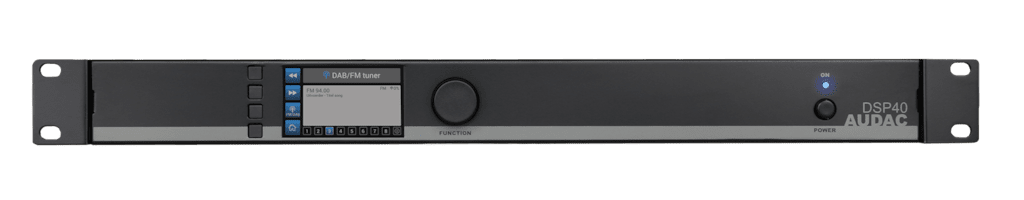

DSP40 DAB/DAB+/FM TUNER
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
DSP40
Opis
Opis na stronie producenta: https://audac.eu/Products/d/dsp40---dab-dabplus-fm-tuner
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Control | Front panel | |||
| RS-232 | ||||
| Inputs | F-type antenna connection (75 Ω) | |||
| FM | Tuning Range (-10 dB) | 87.5 ~ 108 MHz | ||
| Sensitivity (1W/1m) | -108 dBm | |||
| Signal / Noise | 52 dB | |||
| THD+N (@ 1 kHz) | 0.22% | |||
| Frequency Response (± 3 dB) | 30 Hz - 12.5 kHz | |||
| Crosstalk (@ 1 kHz) | 26 dB | |||
| DAB | Sensitivity (1W/1m) | -99 dBm | ||
| Signal / Noise | 81 dB | |||
| THD+N (@ 1 kHz) | 0.026% | |||
| Frequency Response (± 3 dB) | 42 Hz - 20 kHz | |||
| Crosstalk (@ 1 kHz) | 53 dB | |||
| Outputs | Type | Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm)) | ||
| Level | +8 dB ~ -32 dB | |||
| Power | Consumption | 0.7 W | ||
| DAB | Tuning Range (-10 dB) | Band-3 | 171 ~ 240 MHz | |
| L-Band | 1452 ~ 1492 MHz | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 482 x 44 x 330 mm (W x H x D) | |||
| Weight | 3.150 kg | |||
| Mounting | 19” | |||
| Unit height | 1 HE | |||
| Construction | Steel | |||
| Colours | Black | |||
| Accessories | Included | Antenna cable | ||
| Optional | ASK40S 4-way antenna splitter kit | |||
| 2.4 GHz remote control | ||||
