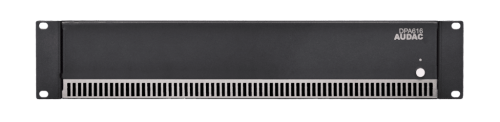

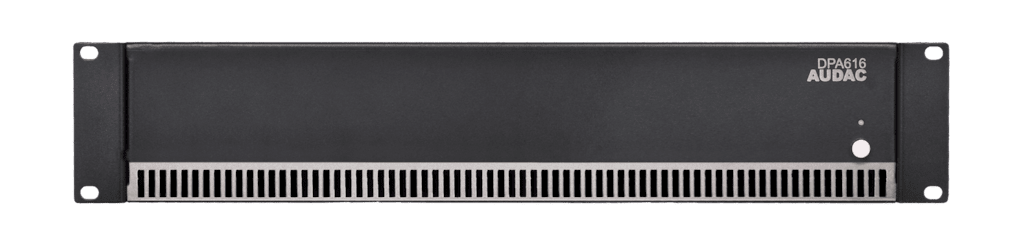

DPA616 SIXTEEN-CHANNEL CLASS-D AMPLIFIER 16 X 60W
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
DPA616
Opis
Opis na stronie producenta: https://audac.eu/Products/d/dpa616---sixteen-channel-class-d-amplifier-16-x-60w
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Signal / Noise | > 100 dB | |||
| THD+N (@ 1 kHz) | < 0.1% | |||
| Technology | Class-D | |||
| Protection | DC Short circuit | |||
| Over heating | ||||
| Over load | ||||
| Signal limiting | ||||
| Operating temperature | 0° ~ 40° @ 95% Humidity | |||
| Frequency | Response (± 3 dB) | 20 Hz - 20 kHz | ||
| Inputs | Sensitivity (1W/1m) | -20 dB ~ +20 dB | ||
| Connector | 3-pin Euro Terminal Block (Pitch - 3.81 mm) | |||
| Outputs | Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) | ||
| Power | Supply | Switching mode | ||
| Source | 100 ~ 240 V AC / 50 ~ 60 Hz | |||
| RMS Power | @ 4 Ω Stereo | 16 x 60 W | ||
| @ 8 Ω Bridge | 8 x 120 W | |||
| @ 8 Ω Stereo | 16 x 30 W | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 482 x 88 x 322 mm (W x H x D) | |||
| Weight | 8.200 kg | |||
| Mounting | 19” | |||
| Unit height | 2 HE | |||
| Construction | Steel | |||
| Colours | Black | |||
| Accessories | Included | 16 x 3-pin Euro Terminal Block Input connectors | ||
| 8 x 4-pin Euro Terminal Block outputs connector | ||||
