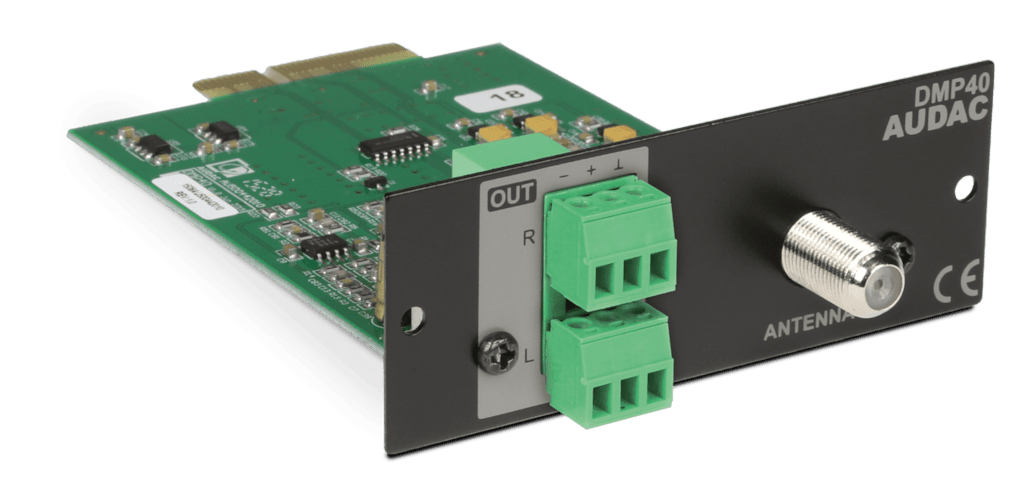

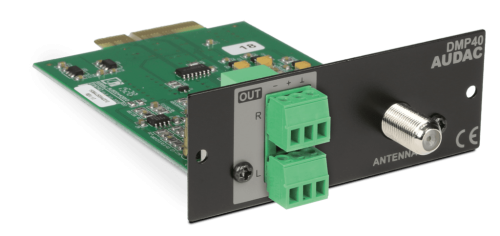

DMP40 SOURCECON™ DAB/DAB+ & FM TUNER MODULE
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
DMP40
Opis
Opis na stronie producenta: https://audac.eu/Products/d/dmp40---sourcecon-dab-dabplus--fm-tuner-module
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Connection | SourceCon™ interface card slot | |||
| Inputs | F-type antenna connection (75 Ω) | |||
| FM | Tuning Range (-10 dB) | 87.5 ~ 108 MHz | ||
| Sensitivity (1W/1m) | -108 dBm | |||
| Signal / Noise | 52 dB | |||
| THD+N (@ 1 kHz) | 0.22% | |||
| Frequency Response (± 3 dB) | 30 Hz - 12.5 kHz | |||
| Crosstalk (@ 1 kHz) | 26 dB | |||
| DAB | Sensitivity (1W/1m) | -99 dBm | ||
| Signal / Noise | 81 dB | |||
| THD+N (@ 1 kHz) | 0.026% | |||
| Frequency Response (± 3 dB) | 42 Hz - 20 kHz | |||
| Crosstalk (@ 1 kHz) | 53 dB | |||
| Outputs | Type | Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm)) | ||
| Level | +8 dB ~ -32 dB | |||
| Power | Consumption | 1.5 W | ||
| DAB | Tuning Range (-10 dB) | Band-3 | 171 ~ 240 MHz | |
| L-Band | 1452 ~ 1492 MHz | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 87 x 34.5 x 114 mm (W x H x D) | |||
| Weight | 0.074 kg | |||
| Mounting | SourceCon™ interface card slot | |||
| Accessories | Included | Antenna cable | ||
| Optional | ASK40S 4-way antenna splitter kit | |||
| RGA10 - Outdoor FM antenna | ||||
| RGA12 - Outdoor DAB/DAB+ antenna | ||||
