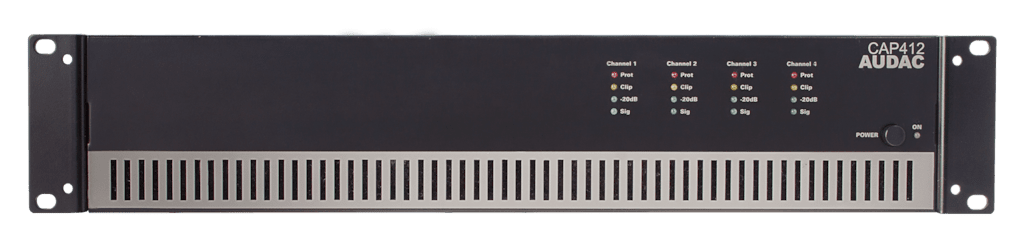

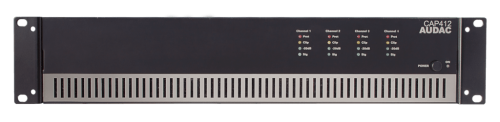

CAP412 QUAD-CHANNEL POWER AMPLIFIER 4 X 120W 100V
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
CAP412
Opis
Opis na stronie producenta: https://audac.eu/Products/d/cap412---quad-channel-power-amplifier-4-x-120w-100v
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| RMS Power | 4 x 120 W | |||
| Signal / Noise | > 100 dB | |||
| THD+N (@ 1 kHz) | < 0.3% (1/2 Rated Power) | |||
| Crosstalk (@ 1 kHz) | < 80 dB | |||
| Technology | Class-D | |||
| Common mode rejection ratio | 70 dB | |||
| Protection | DC Short circuit | |||
| Over heating | ||||
| Over load | ||||
| Signal limiting | ||||
| Cooling | Temperature controlled FAN | |||
| Operating temperature | 0° ~ 40° @ 95% Humidity | |||
| Frequency | Response (± 3 dB) | 50 Hz - 22 kHz | ||
| Power | Supply | Switching mode | ||
| Source | 100 ~ 240 V AC / 50 ~ 60 Hz | |||
| Inputs | Sensitivity (1W/1m) | -0.5 dB ~ 10.5 dB | ||
| Impedance | 10 kΩ balanced | |||
| Connector | XLR female with Male Linkthrough | |||
| Outputs | Voltage / Impedance | 100 V / 83 Ω | ||
| 70 V / 42 Ω | ||||
| 4 Ω | ||||
| Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 482 x 88 x 420 mm (W x H x D) | |||
| Weight | 14.800 kg | |||
| Mounting | 19” | |||
| Unit height | 2 HE | |||
| Construction | Steel | |||
| Colours | Black | |||
| Accessories | Included | 4 x 4-pin Euro Terminal Block outputs connector | ||
| Optional | CPE100 Rack mount handles | |||
