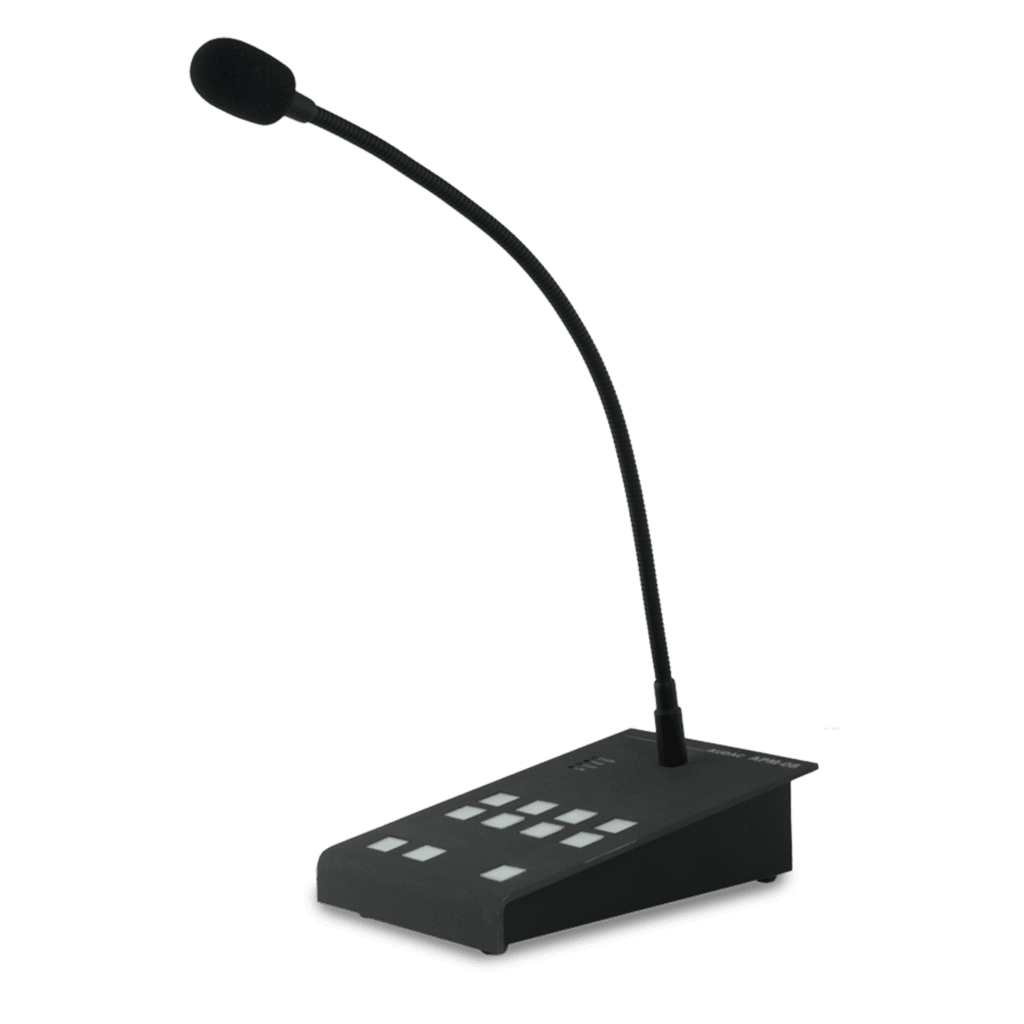

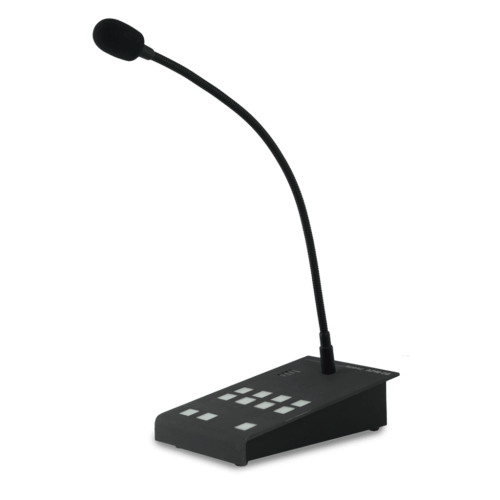

APM108 DIGITAL PAGING MICROPHONE 8 ZONES
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
APM108
Opis
Opis na stronie producenta: https://audac.eu/Products/d/apm108---digital-paging-microphone-8-zones
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Polar Pattern | Cardioid (unidirectional) | |||
| Sensitivity (1W/1m) | -42 dB ± 3 dB / Pa | |||
| Buttons | 8 x programmable zone/function | |||
| 1 x PTT (push-to-talk) | ||||
| 1 x select & clear all | ||||
| Indicators | 3 Colours illuminated push button | |||
| Level & status indication LED’s | ||||
| Internal storage | 10 minutes audio or messages spread over max 30 files | |||
| Connectors | RJ45 (data + Power) | |||
| Connection standard | TIA/EIA T568B | |||
| Microphone | Type | Back electret condenser | ||
| Frequency | Response (± 3 dB) | 100 Hz - 20 kHz | ||
| Power | Supply | 24 V DC (min. 16V DC) | ||
| Consumption | 4.8 W | |||
| Microphone | Gooseneck length | 350 mm | ||
| Max. cable length | With external PSU | 300 m | ||
| Without external PSU | 133 m | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 120 x 55 x 190 mm (W x H x D) | |||
| Weight | 1.350 kg | |||
| Data protocol | RS-485 | |||
| Audio protocol | Analogue | |||
| Digital (configurable) | ||||
| Colours | Grey metallic front panel | |||
| Construction | Steel | |||
| Required cabling | Analog | UTP CAT5E | ||
| Digital | UTP CAT6 | |||
| Accessories | Included | Windscreen (MWS05/B) | ||
| Optional | ARJ03P junction box | |||
| CP45ARJ RJ45 junction plate | ||||
| PSD24x external Power supply | ||||
