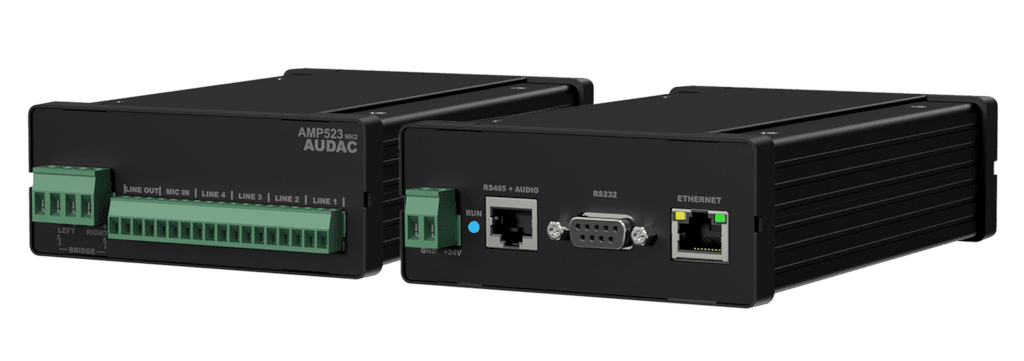

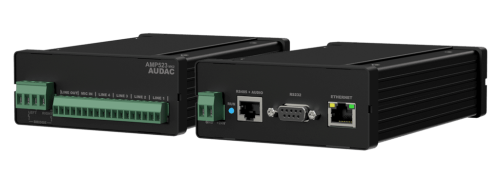

AMP523 WEB-BASED MINI STEREO AMPLIFIER 2 X 15W
Dostępność:
dostępny na zamówienie
Ocena:
0
0
Producent:
Kod produktu:
AMP523
Opis
Opis na stronie producenta: https://audac.eu/Products/d/amp523---web-based-mini-stereo-amplifier-2-x-15w
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| THD+N (@ 1 kHz) | < 0.1% | |||
| Crosstalk (@ 1 kHz) | < -75 dB | |||
| Signal / Noise | > 95 dB | |||
| Efficiency | 87% | |||
| Cooling | Passive | |||
| Protection | Over heating | |||
| DC Short circuit | ||||
| Limiter | ||||
| Control | RS-232 | |||
| TCP/IP | ||||
| RS-485 | ||||
| Socket Connections (AUDAC Touch™) | 2 sockets | |||
| Outputs | Type | 1 x Stereo Loudspeaker | ||
| Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) | |||
| Power | Supply | 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) | ||
| Inputs | Unbalanced Stereo | Type | 4 x Stereo Unbalanced Line | |
| Balanced Stereo | Connector | 18-pin Euro Terminal Block (Pitch - 3.81 mm) | ||
| Impedance | 20 kΩ | |||
| Sensitivity (1W/1m) | -10 dBV ~ +4 dBV | |||
| Balanced Microphone | Type | 1 x Balanced Microphone | ||
| Connector | 18-pin Euro Terminal Block (Pitch - 3.81 mm) | |||
| Impedance | 47 kΩ | |||
| Sensitivity (1W/1m) | -45 dBV ~ -20 dBV | |||
| Other | Type | 1 x RS-485 + Differential audio | ||
| Connector | RJ45 | |||
| Type | 1 x RS-232 | |||
| Connector | SUBD9 | |||
| Type | 1 x Ethernet | |||
| Connector | RJ45 | |||
| Power | Consumption | Standby | < 3.0 W (PSD242 included) | |
| RMS Power | @ 4 Ω Stereo | 2 x 15 W | ||
| @ 8 Ω Stereo | 2 x 7.5 W | |||
| Satellite | @ 8 Ω Bridge | 30 W | ||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 108 x 44 x 165 mm (W x H x D) | |||
| Weight | 0.81 kg | |||
| Accessories | Included | PSD241 - Power supply 24V / 1.67 A (Efficiency Level V) | ||
| Optional | Wall Controller (MWX45) | |||
| WMI18/22 & WLI18/22 Wall input unit | ||||
| MBS1xx Wall mounting brackets | ||||
| TR3030 100V Transformer 30 W | ||||
