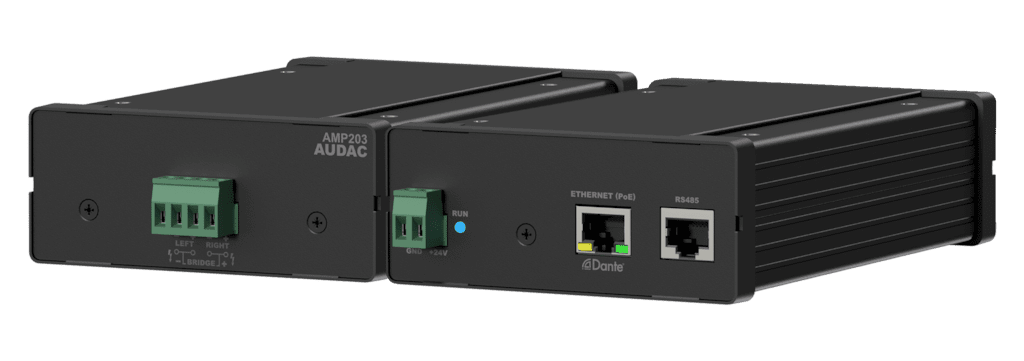

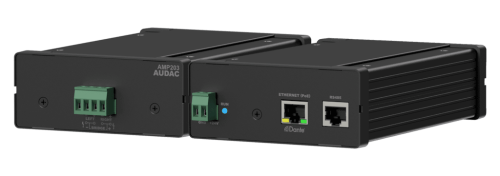

AMP203 DANTE™ MINI STEREO AMPLIFIER
Opis
Opis na stronie producenta: https://audac.eu/Products/d/amp203---dante-mini-stereo-amplifier
SYSTEM SPECIFICATIONS | ||||
---|---|---|---|---|
THD+N (@ 1 kHz) | < 0.015% | |||
Crosstalk (@ 1 kHz) | < -98 dB | |||
Efficiency | > 70% | |||
Cooling | Convection cooled | |||
Control | RS-485 | |||
TCP/IP | ||||
Power | PoE 802.3bt | |||
Protection | Over heating | |||
Over load | ||||
DC Short circuit | ||||
Signal limiting | ||||
RMS Power | @ 2 Ω Bridge | 1 x 60 W | ||
Power | Supply | 24 V DC | ||
Outputs | Type | 1 x Stereo Loudspeaker | ||
Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) | |||
Power | Consumption | 80 W (max.) | ||
Inputs | Other | Type | 1 x Ethernet | |
RS-485 | ||||
Dante/AES67 (4 channels) | ||||
Connector | RJ45 | |||
Power | Consumption | Nominal (1/8 MUP) | 10.6 W | |
RMS Power | @ 4 Ω Stereo | 2 x 30 W | ||
@ 8 Ω Bridge | 1 x 30 W | |||
@ 8 Ω Stereo | 2 x 30 W | |||
@ 4 Ω Bridge | 1 x 60 W |
PRODUCT FEATURES | ||||
---|---|---|---|---|
Dimensions | 108 x 44 x 165 mm (W x H x D) | |||
Weight | 0.7 kg |
